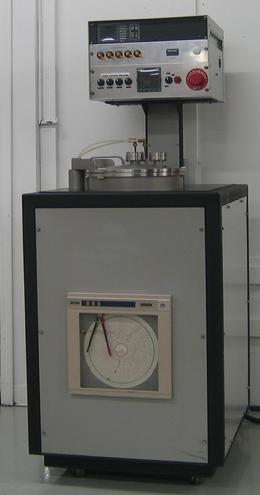

7.5" x 7" Vacuum Furnace

Maximum Temperature:
1000^o C

Hot Zone Dimensions:
7.5” diameter x 7” high element-to-element

External Dimensions:
Approximately 68” H x 28” W x 41” D

Power Requirements:
220 volts

Atmosphere:
High vacuum operation
Inert gas backfill to aid cooling

Features:
This entire unit is a totally enclosed, packaged, and assembled unit that is shipped as one piece, requiring only the water in and out, backfill gas, and power to be connected to the appropriate locations.

All new graphite blanket hot zone

All new molybdenum heating elements 360^o around the work for optimum temperature uniformity

Eurotherm 2404 programmable temperature controller

Manual valve operation with automatic ramps and soaks

4” diffusion pump

Mechanical vacuum pump

Digital high limit safety controller

Digital vacuum gauge

We provide written operating procedures, complete detailed electrical schematics, and manuals for all instrumentation and controls on the furnace.

This unit is leak-tested with a helium mass spectrometer, with no detectable leak in the  10^-9 range. Price includes one day of training at our facility in Terryville, CT.

Fully operational condition. We can demonstrate this unit at our plant in Terryville, CT.

The following options are available at an additional charge:

6-channel digital recorder.

6-thermocouple vacuum feedthrough port (not including thermocouples).
