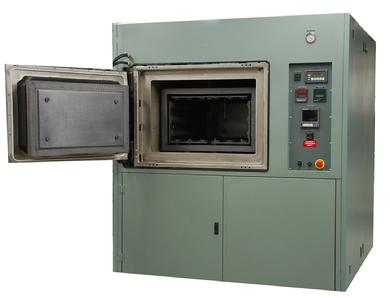

2400 C Vacuum Sintering Furnace
This furnace is in stock at our plant in Terryville, CT.
It is fully operational and can be demonstrated at our facility.
Standard one-year warranty included.
It can be used for:
Sintering body armor
Sintering Humvee armor
Sintering tank armor
Other high temperature
applications |
- Maximum temperature: 2400o C (4320o F)
- Internal dimensions: 10" high x 22" wide x 36" deep element-to-element
- External dimensions: 86" high x 76" wide x 85" deep
- Graphite rigid board insulation
- Graphite heating elements on all four sides for optimum temperature uniformity
- 480 volts, 3 phase, 225 kilowatts
- 6-channel digital chart recorder
- Yokogawa UP550 digital programmable temperature controller with 30 programs and 300 segments
- New, improved PLC programmer / controller for fully automatic operation with alphanumeric display to indicate furnace processing cycles
- High limit safety controller
- Digital vacuum gauge
- High-accuracy Raytek digital optical pyrometer
- Automatic transfer from thermocouple to optical pyrometer for both low temperature and high temperature automatic operation
- Mechanical vacuum pump with Roots blower
|
|
|
